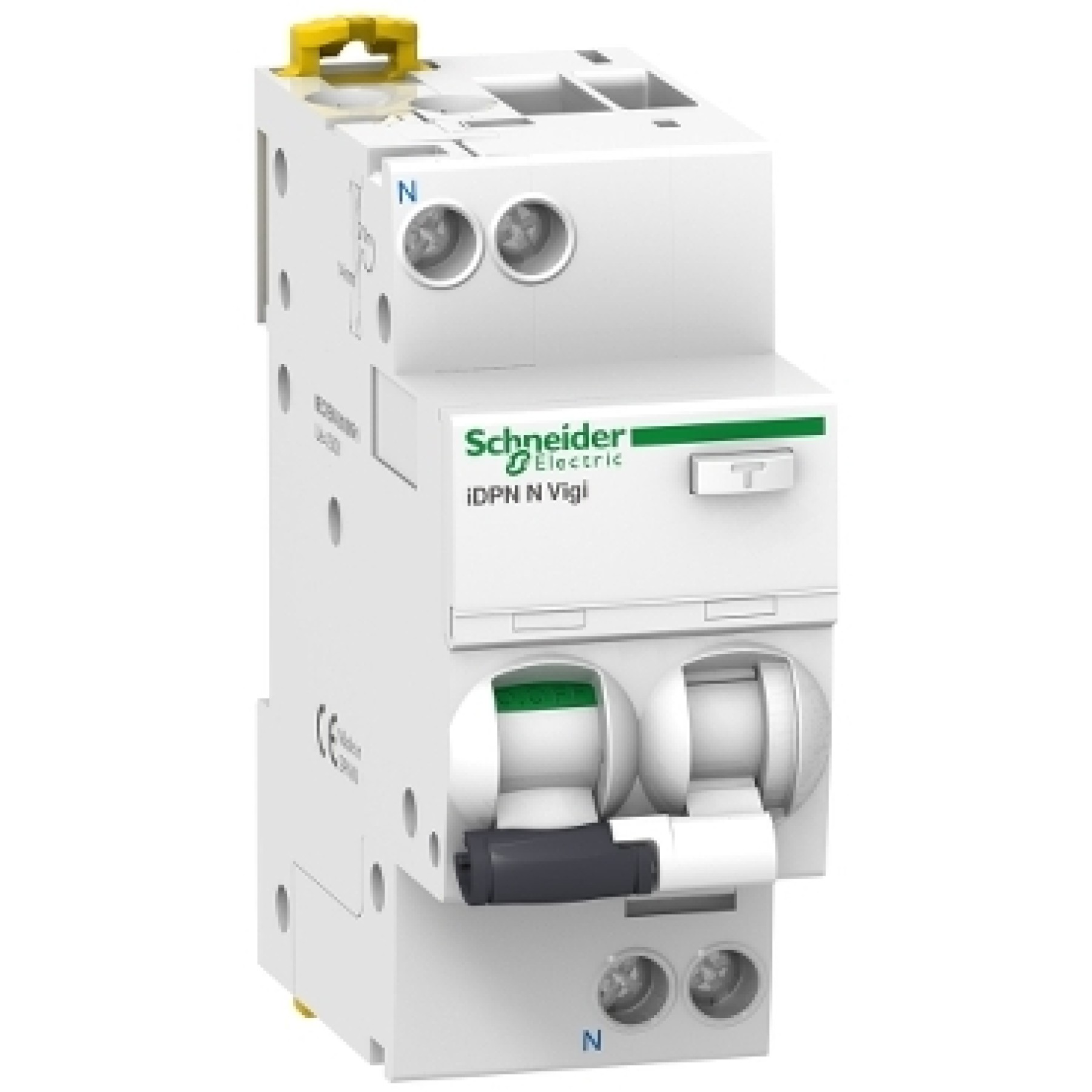

Schneider A9D01610 Acti9 iDPN N Vigi - RCBO - 1P+N - 10A - 110 V - C Curve - 6000A - 30mA - type A
Product Code: A9D01610
Price
£154.54 ex. VAT £185.45 inc. VAT
Call For Availability
Add To Favourites
Product Overview
A9D01610 - This Acti9 iDPN Vigi is a modular residual current breaker with overcurrent protection (RCBO).
Key Features
- RCBO - Schneider A9D01610 Acti9 iDPN N Vigi
- Rated Current: 10A
- Poles: 1 + N
- Earth Leakage Sensitivity: 30mA
- Breaking Capacity: up to 6000A
Specifications
- Product Title: Schneider A9D01610 Acti9 iDPN N Vigi - RCBO - 1P+N - 10A - 110 V - C Curve - 6000A - 30mA - type A
- SKU: A9D01610
- Manufacturer: Schneider
- Operational Voltage: 110VAC
- Frequency: 50Hz
- Dimensions (W x H x D): 36mm x 85mm x 73mm
- Weight: 125g
- Protection Rating: IP20
- Operating Temperature: -25 C to 60 C
| Amps | 10A |
|---|---|
| Pole | 1 + N |
| Product Type | RCBO |
| MA | 30 |
