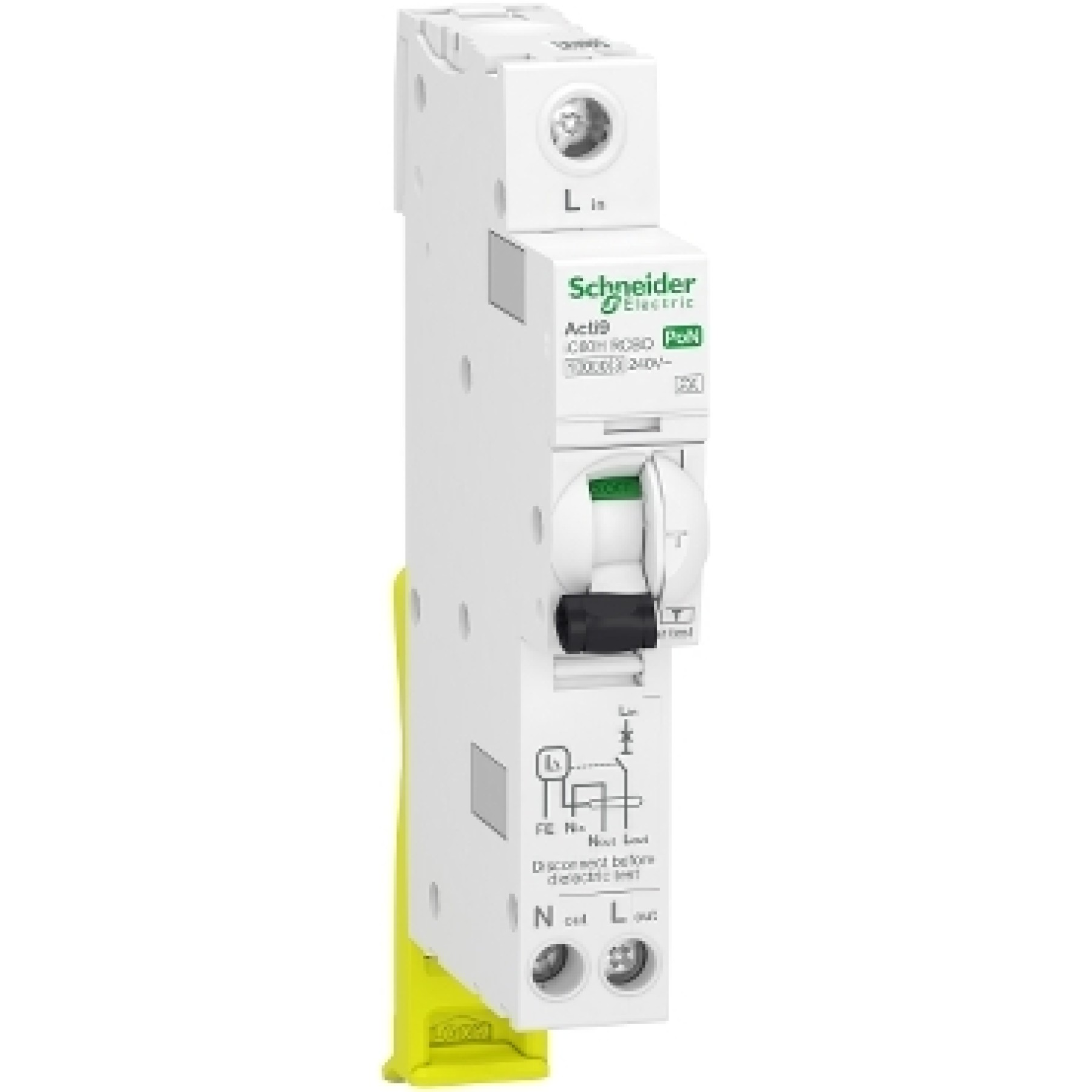

Schneider A9D05806 Acti9 iC60H RCBO plug on neutral - 1P+Ns - 6A - C - 10000A - 30mA - type A

Product Overview

A9D05806 - This Acti9 iC60 is a modular residual current breaker with overcurrent protection (RCBO).

Key Features

• RCBO - Schneider A9D05806 Acti9 iC60H RCBO plug
• Rated Current: 6A
• Poles: 1 + N
• Earth Leakage Sensitivity: 30mA
• Breaking Capacity: up to 10000A

Specifications

• Product Title: Schneider A9D05806 Acti9 iC60H RCBO plug on neutral - 1P+Ns - 6A - C - 10000A - 30mA - type A
• SKU: A9D05806
• Manufacturer: Schneider
• Operational Voltage: 240VAC
• Frequency: 50/60Hz
• Dimensions (W x H x D): 18mm x 110mm x 72mm
• Weight: 156g
• Protection Rating: IP20
• Operating Temperature: -15 C to 60 C
