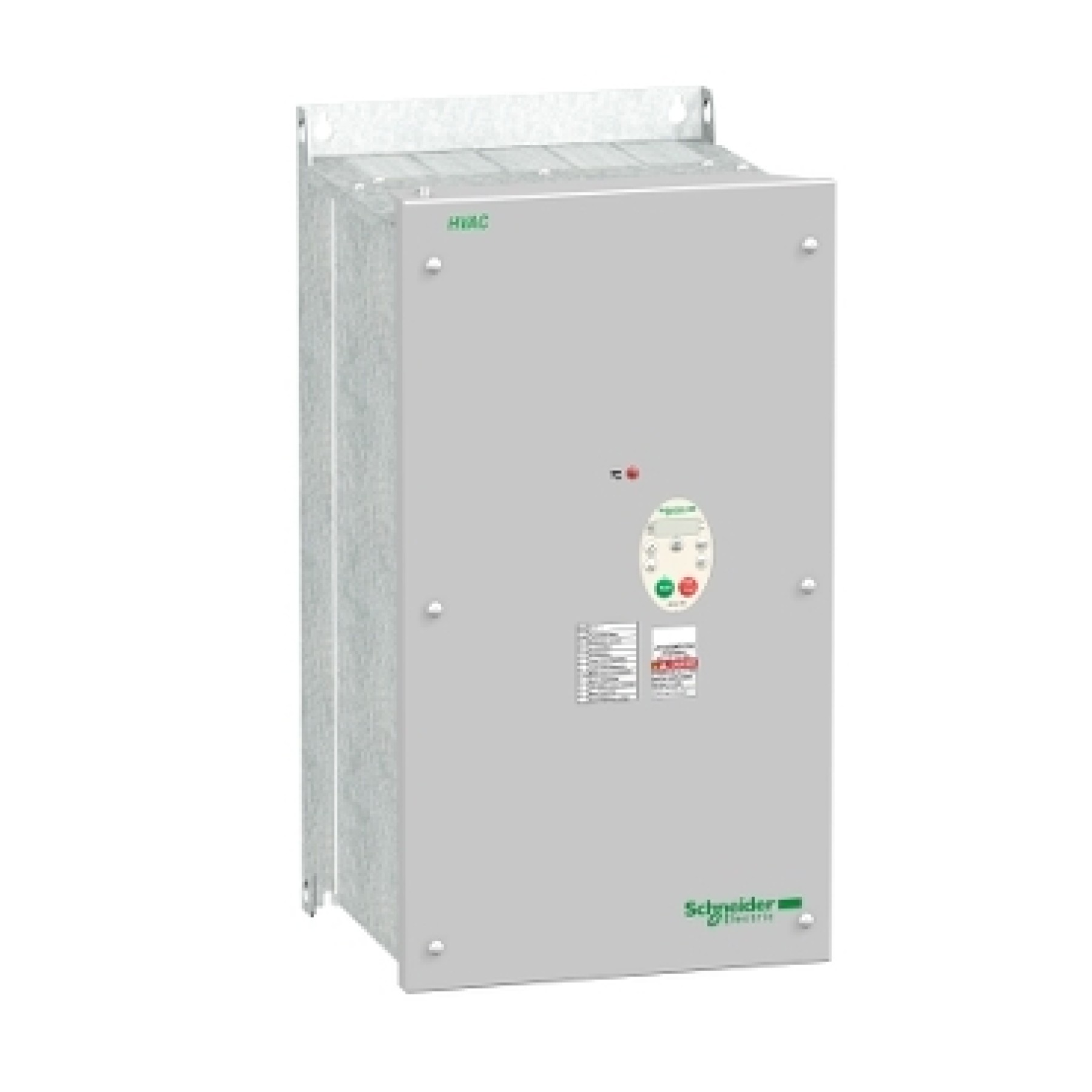

Schneider ATV212WD11N4 Variable Speed Drive VSD 11KW 3PH INVERTER HVAC IP55

ATV212WD11N4

Specifications:

• This Altivar 212 variable speed drive can feed 3-phase asynchronous motors.
• Its protection index is IP55 and it has a built-in EMC filter.
• It works at a rated power up to 11kW / 15hp and a rated voltage from 380V to 480V AC.
• Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system.
• Thanks to its cable temperature rise reduction technology the Altivar 212 drive offers immediate disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics.
• It weighs 30.3kg and its dimensions are 290mm wide 560mm high 315mm deep.
