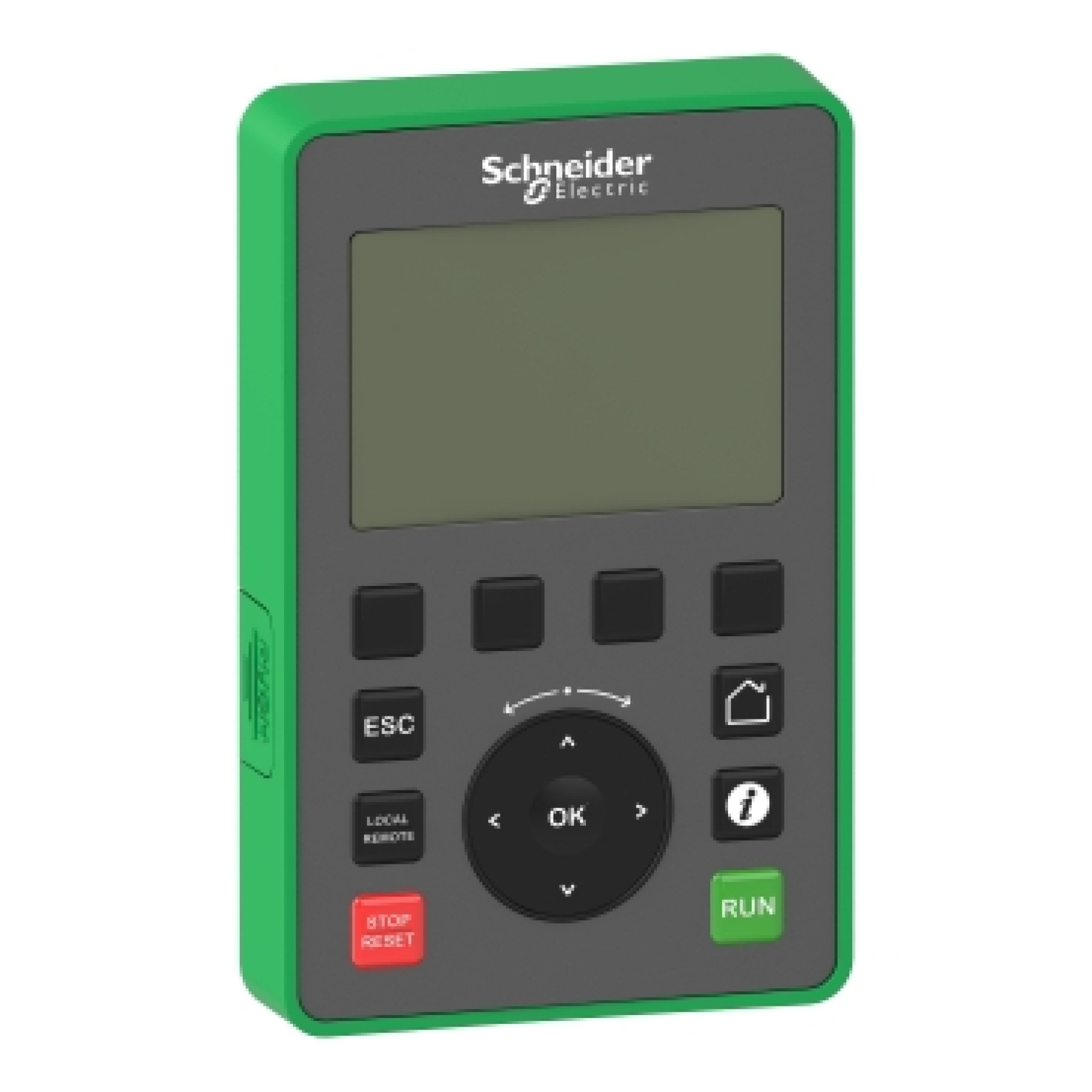

Schneider VW3A1111 Graphic Display Terminal / Control Panel - 240 x 160 pixels - IP65 for ATV930 ATV630 ATV340

Schneider Graphic Display Terminal / Control Panel - 240 x 160 pixels - IP65 for ATV930 ATV630 ATV340

Part Number: VW3A1111

This graphic terminal is an option for variable speed drives of Altivar range.

It is a dialogue option for the variable speed drive.

Specifications:

• Its protection index is IP65.
• This terminal can be connected and mounted on the front of the drive or on an enclosure door using a remote mounting accessory it also can be connected to a PC to exchange files or to several drives in multidrop mode.
• Its maximum operating temperature is 50 -C.
• It provides a pixel resolution of 240 x 160 pixels and 8 lines of display.
• It weighs 200g.
• It provides 24 integrated languages (complete alphabets) covering the majority of countries around the world (other languages can be added).
• It is used to control adjust and configure the drive display the current values (motor input/output values etc.) save and download configurations (several configurations can be saved in the 16MB memory).

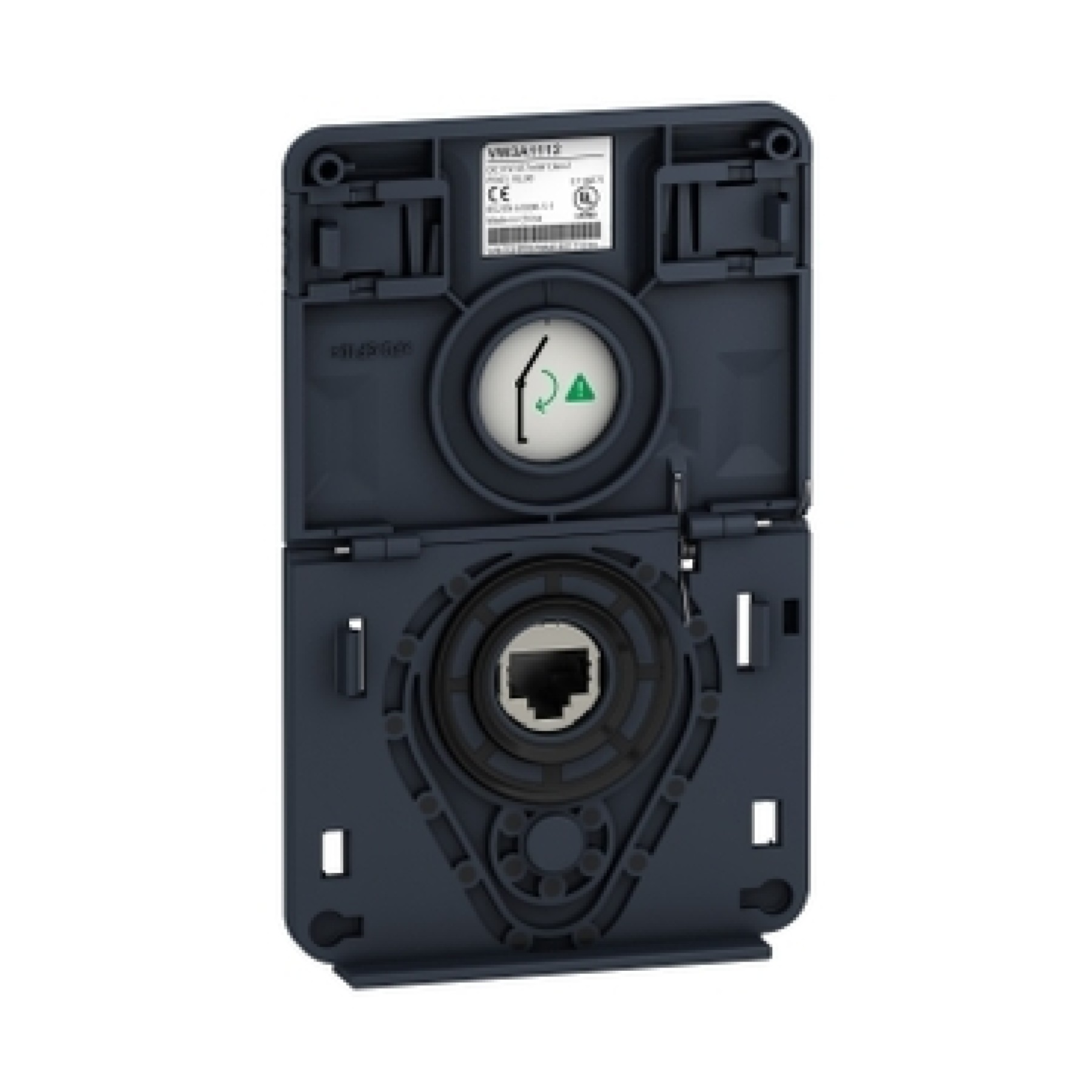

• A remote mounting kit for mounting on enclosure door with IP65 degree of protection is available as accessory to be ordered separately.
• IP65.
