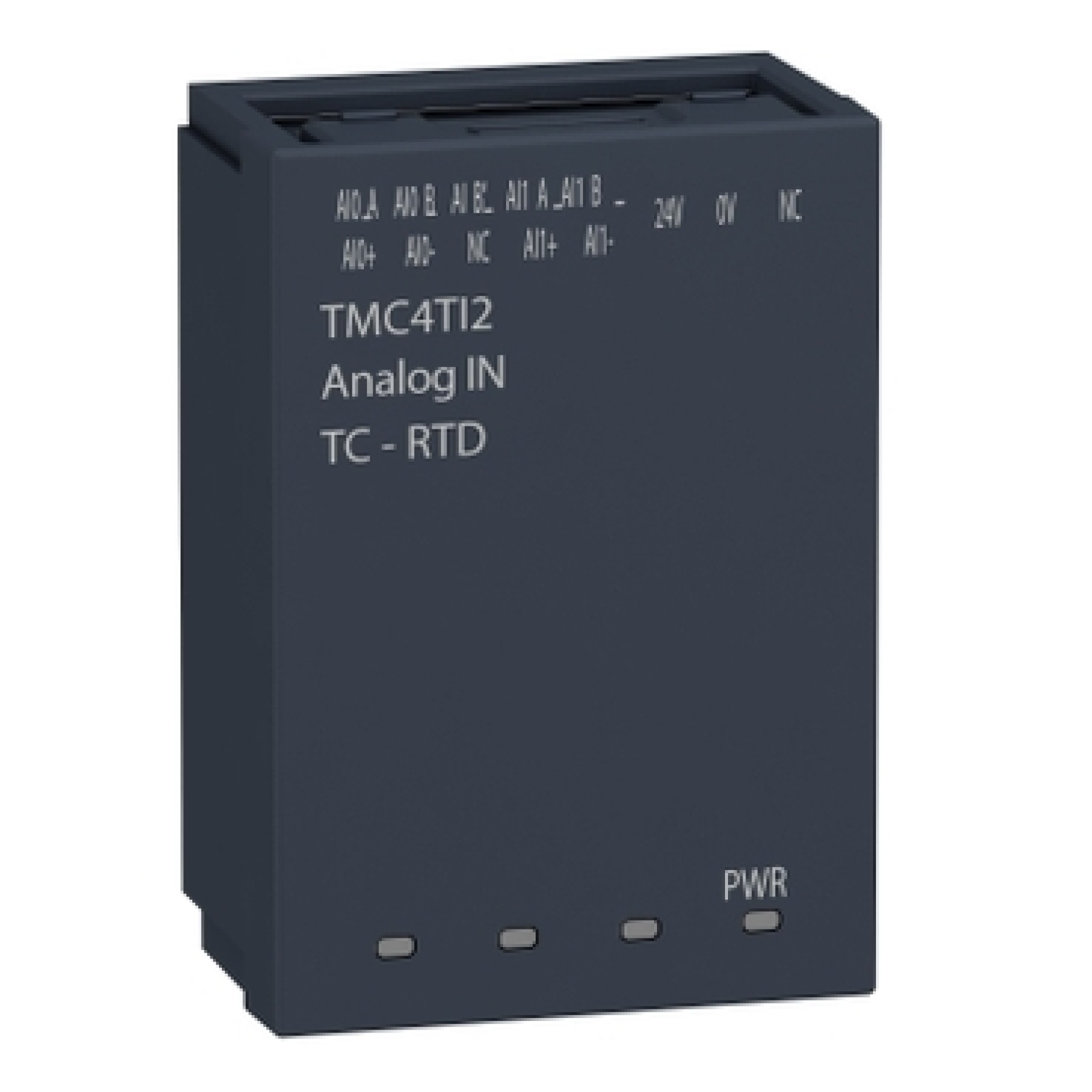

Schneider TMC4TI2 Analogue Input Cartridge Modicon M241 2 Temperature Inputs

Schneider TMC4TI2 Analogue Input Cartridge Modicon M241 2 Temperature Inputs

Part Number: TMC4TI2

Schneider Analogue Input Cartridge Modicon M241 2 Temperature Inputs Part Number: TMC4TI2 Part of the Modicon M241 range this unit is designed as logic controllers for performance demanding applications..

Analog input cartridge for logic controllers..

Specifications:

• It provides 2 temperature inputs with 14bit resolution..
• The maximum twisted shielded pairs cable distance between devices is <30m for input..
• Insulation rating: input and internal logic at 500V DC and no insulation between inputs..
• Connection type: spring terminal for electrical connection..
• Dimensions: 34mm (Width) x 21mm (Depth) x 50mm (Height)..
• Weight: 0.055kg..
• Compatible with Modicon M241C PLC.. the Modicon M241 through intuitive machine programming with Eco.
• Struxure Machine Expert ready-to-use applications and function blocks..
