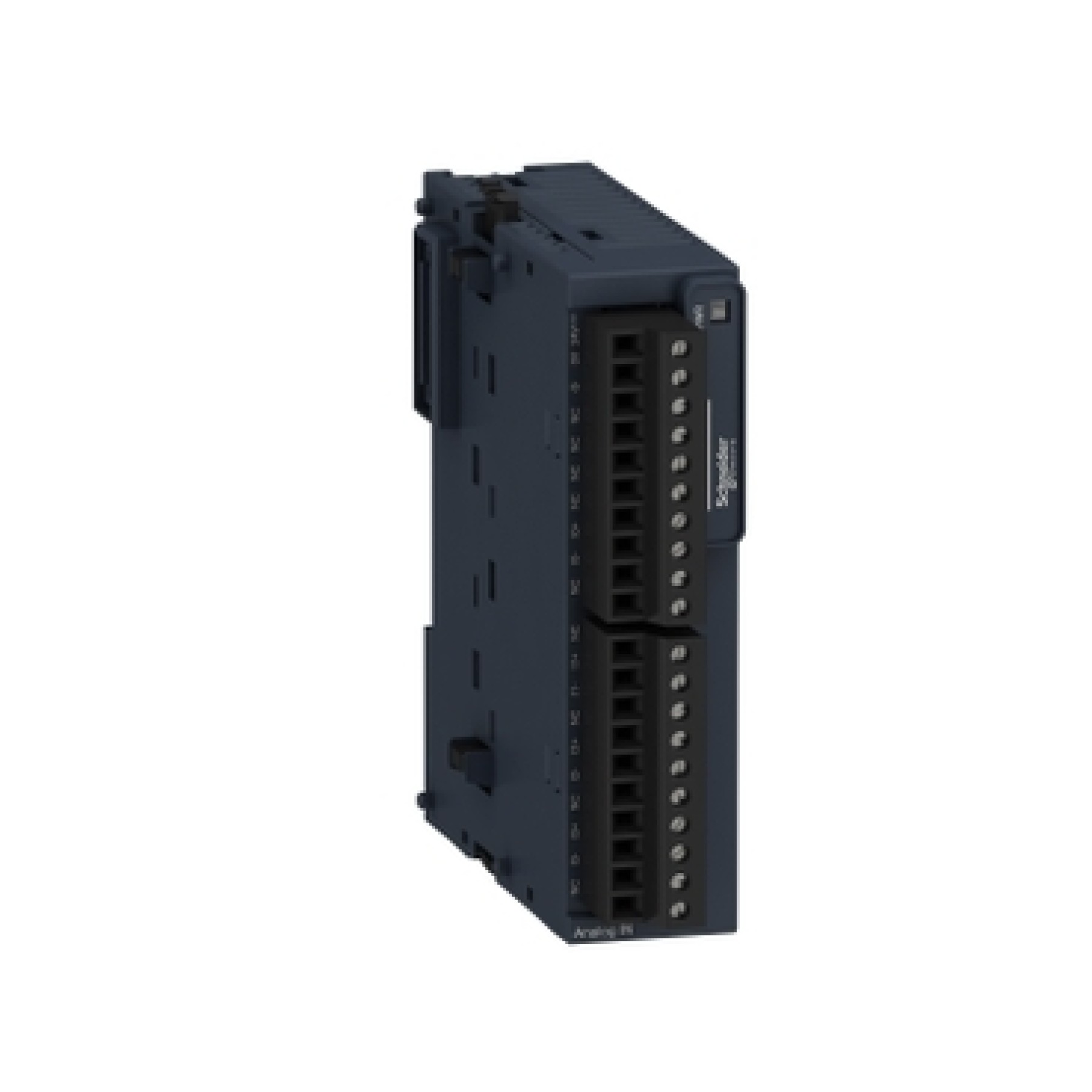

Schneider TM3AI4 Modicon Tm3 - 4 Analog Inputs (Screw) 24Vdc

Schneider TM3AI4 Modicon Tm3 - 4 Analog Inputs (Screw) 24Vdc

Part Number: TM3AI4

Schneider Modicon Tm3 - 4 Analog Inputs (Screw) 24Vdc Part Number: TM3AI4 Part of the Modicon TM3 range this unit is designed as expansion I/O modules for Modicon M221 M241 M251 and M262..

Provides 4 inputs with 12bit + sign and 11bit resolution..

Specifications:

• Input module specification: a rated supply voltage of 24V DC and a current consumption of 35m.
• A at 5V DC via bus connector no load 45m.
• A at 5V DC via bus connector full load 30m.
• A at 24V DC via external supply..
• Suitable for controlling variable speed drives or any device equipped with a current or voltage input..
• Insulation rating: input and supply at 1500V AC input and internal logic at 500V AC..
• Connection type: removable screw terminal for electrical connection with 3.18mm pitch adjustment for inputs and supply..
• Protection rating: IP20 HVAC INVERTER DRIVE..
• Dimensions: 23.6mm (Width) x 70mm (Depth) x 90mm (Height)..
• Weight: 0.11kg..
• Certifications: CE..
• Standards: EN/IEC 61131-2 and EN/IEC 61010-2-201 standards..
• Compatible with Modicon M262 Modicon M241 Modicon M251 and Modicon M221 logic controller..
• Mounting options: top hat type TH35-15 top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount..
• TM3 expansion modules use a simple interlocking assembly mechanism..
• The bus expansion connector distributes data and the power supply when assembling the Modicon TM3 modules with logic controllers..
• Designed for use with the Modicon TM3 I/O system for the Modicon M221 M241 and M251 logic controllers..
