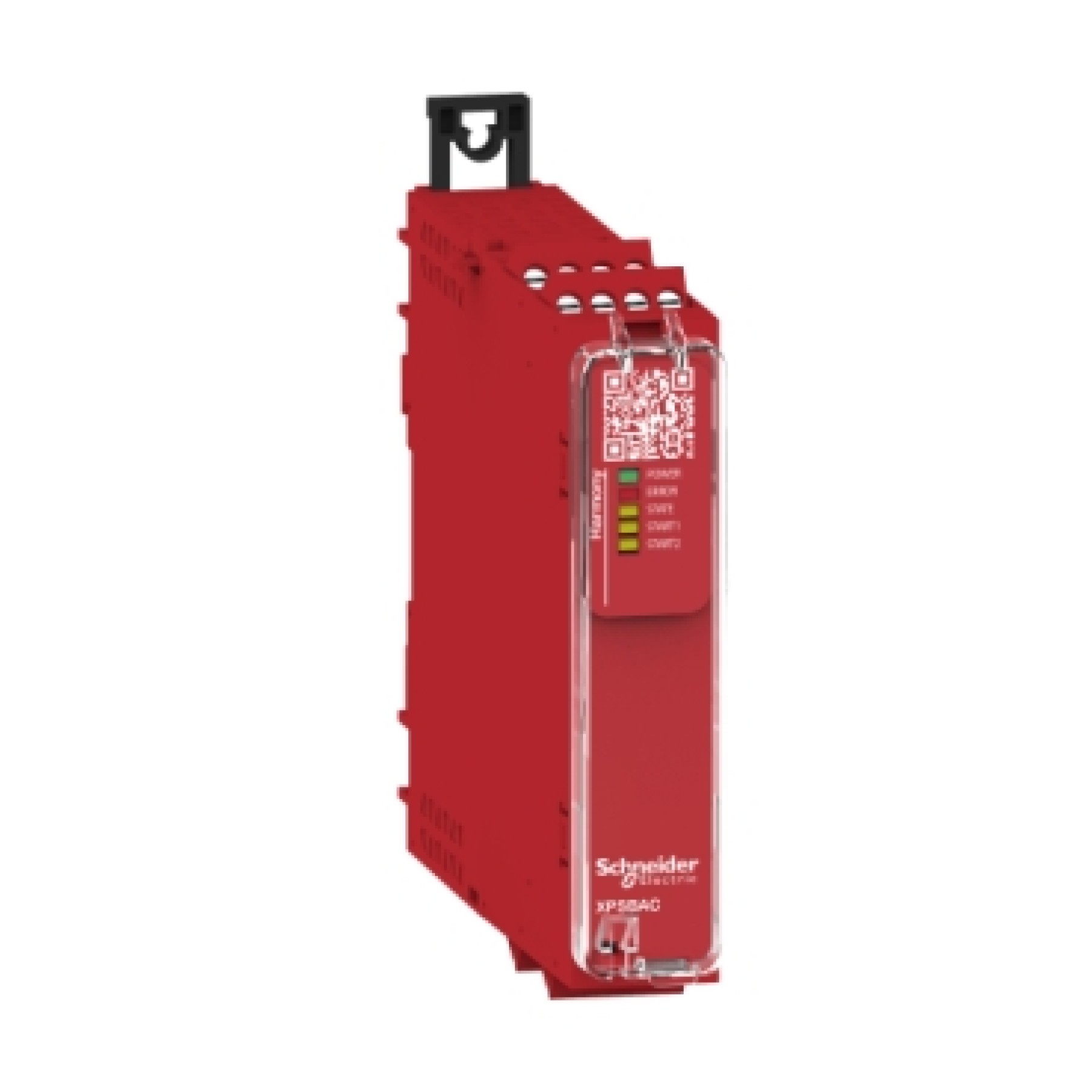

Schneider XPSBAC14AP Estop or guard Harmony XPS connected to supply terminals 24 V AC/DC no inputs screw 4NO 2 NC

Schneider Estop or guard Harmony XPS connected to supply terminals 24 V AC/DC no inputs screw 4NO 2 NC

Part Number: XPSBAC14AP

This safety relay is designed for monitoring Emergency stop and Guard switch.

The safety relay is powered with 24V AC/DC and equipped with a screw removable terminal block.

Specifications:

• This basic safety modules embeds pre-defined safety functions.
• This safety relay embeds 1 control output 4 NO safety outputs and 2 NC diagnostic outputs.
• The maximum safety level achieved by this safety relay is PLe/Category 4 conforming to ISO13849-1 SILCL 3 conforming to IEC62061 SIL 3 conforming to IEC61508.
• This safety relay weighs 0 200kg.
• Its dimensions are 22 5mm (Width) x 120mm (Depth) x 100mm (Height).
• This safety relays is suitable for applications such as Food and Beverage Hoisting Material Handling Material Working Packaging.
• This safe relay conforms to IEC 60947-5-1 IEC 61508-1 IEC 61508-2/-3 ISO 13849-1 IEC 62061 functional safety standards is certified by c.
• ULus T-V.
• Harmony safety relays are compatible with Modicon logic controllers.
• This relay is mounted on a 35mm symmetrical DIN rail.
• Harmony XPS Basic and Universal safety relays are the first choice for managing single safety functions easily typically in machines of simple to medium complexity.
• Harmony XPS Basic offers the most optimised solution for applications with hardwired safety modules.
• 24 V.
