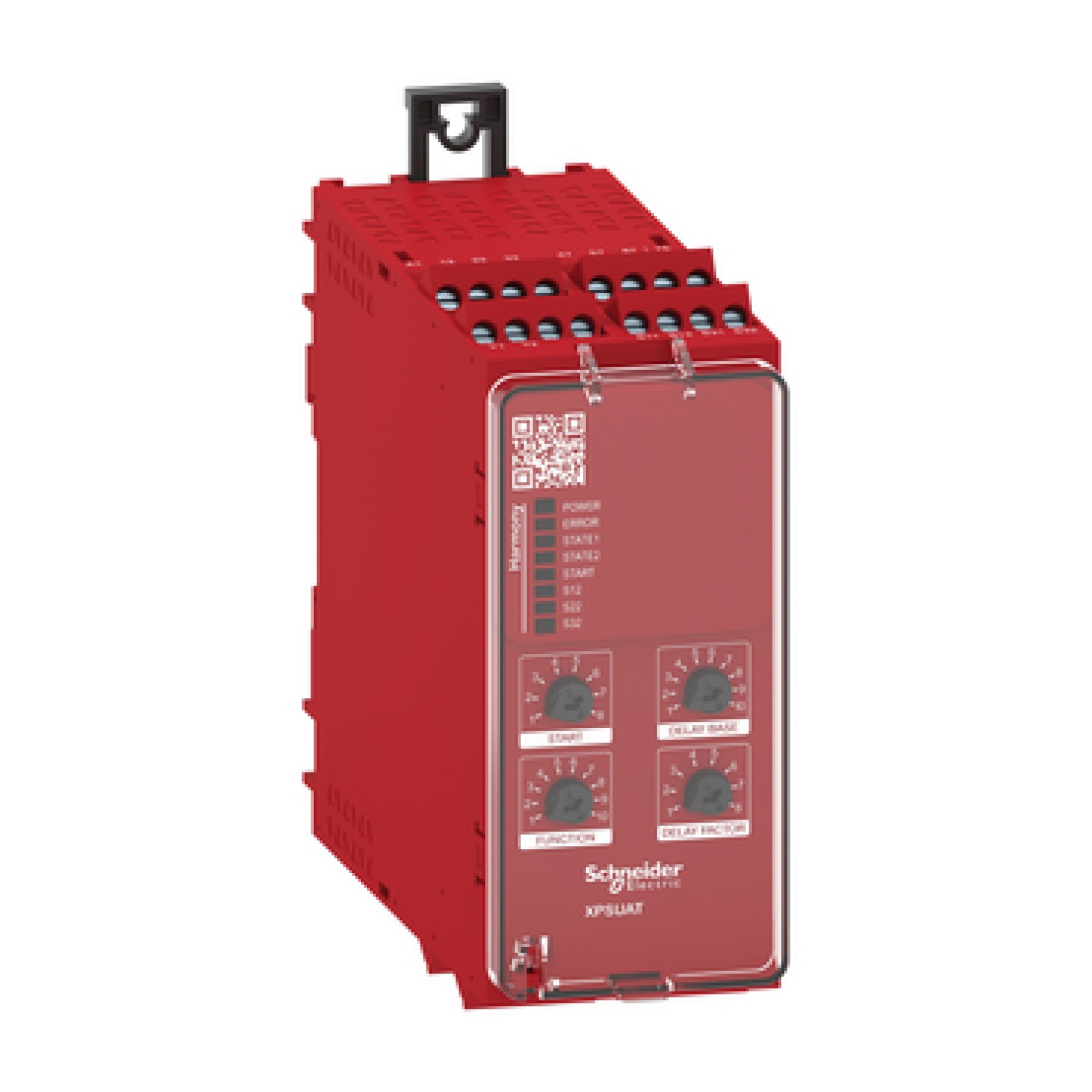

Schneider XPSUAT13A3AP Preventa module Cat.4 features XPSUAK + delayed outputs 24vac/dc screw

Schneider Preventa module Cat.4 features XPSUAK + delayed outputs 24vac/dc screw

Part Number: XPSUAT13A3AP

This safety relay is designed for monitoring Emergency stop Guard switch Magnetic switch Proximity safety switch PNP NPN sensor RFID safety switch Safety light curtain or Sensing mat/edges.

The safety relay is powered with 24V AC/DC and equipped with a screw removable terminal block.

Specifications:

• This universal safety module embeds pre-defined safety functions or selectable safety functions via rotary selectors.
• This safety relay embeds 2 positive 1 negative safety inputs 4 ON/OFF configurable pulsed outputs 3 NO immediate 3 NO configurable 1 NC configurable safety outputs 2 solid state diagnostic outputs.
• The maximum safety level achieved by this safety relay is PLe/Category 4 conforming to ISO 13849-1 SILCL 3 conforming to IEC 62061 SIL 3 conforming to IEC 61508.
• This safety relay weighs 0 350kg.
• Its dimensions are 45mm (Width) x 120mm (Depth) x 100mm (Height).
• This safety relays is suitable for applications such as Food and Beverage Hoisting Material Handling Material Working Packaging.
• This safe relay conforms to IEC60947-5-1 IEC61508-1/2/3 ISO13849-1 IEC62061 functional safety standards is certified by c.
• ULus T-V EAC CCC and KC marking.
• Harmony safety relays are compatible with Modicon logic controllers.
• This relay is mounted on a 35mm symmetrical DIN rail.
• Harmony XPS Basic and Universal safety relays are the first choice for managing single safety functions easily typically in machines of simple to medium complexity.
• Harmony XPS Universal is the first choice for a broad range of simple to mid-complex machines.
