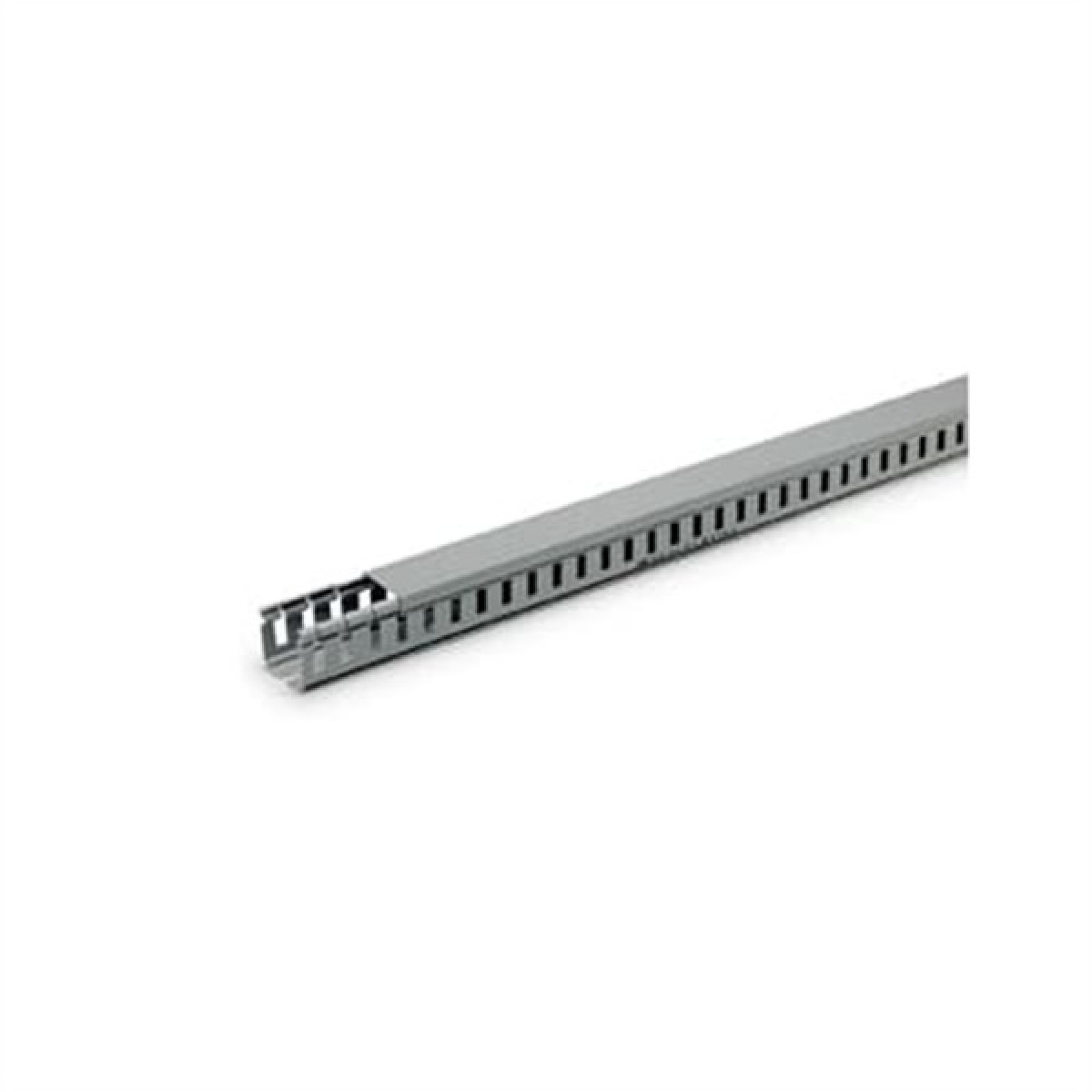

ABB 05089 80x80 Standard Slot Panel Trunking 8 / 12mm slots

Minimum Order Quantity **8**

Product Overview

ABB 80X80 Standard Slot Panel Trunking 8 / 12mm slots (SKU: 05089).

Key Features

• No burr rounded-off inner edges
• New rib profile makes it easy to open and close the cover and guarantees that it clips on more safely
• Controlled splaying of sides to ensure a perfect seal of the cover in the vertical sections and at high temperatures
• Double trimming line one at the base of the ribs so that they can be removed by bending them outwards and one at the base of the lateral sides so that the edge can be cut when two wiring ducts are branched
• Cover can be opened without having to use a special tool
• Can be mounted on horizontal or vertical surfaces even when the cover is on the bottom
• Industrial application

Specifications

• SKU: 05089
• Product Name: ABB 80X80 Standard Slot Panel Trunking 8 / 12mm slots
• Colour RAL 7030 grey
• Plastic insulating shock-proof self-extinguishing material
• Minimum storage/transport temperature -5 Degrees C
• Minimum installation and usage temperature -15 Degrees C
• Maximum usage temperature +60 Degrees C
• Resistant to acids oils and greases
• Designed to snap onto the Fix-O-rapid special accessory suitable to be fastened both to DIN rail and base plate
• The ribs are cut using a special pressing process (rounding of the edges) producing wiring ducts completely free of burr and rough edges
• The dimensions and resilience of the ribs ensure repeated splaying during cabling
• Cable holder mouldings half-way up the straight section of the ribs in 80 and 100-mm high wiring ducts
• Standard 2-metre length
• Material in compliance with UL 94 V0 Standard and resistant to abnormal heat and fire up to 960 Degrees C (glow wire test) in compliance with IEC 695-2-1 Standard
