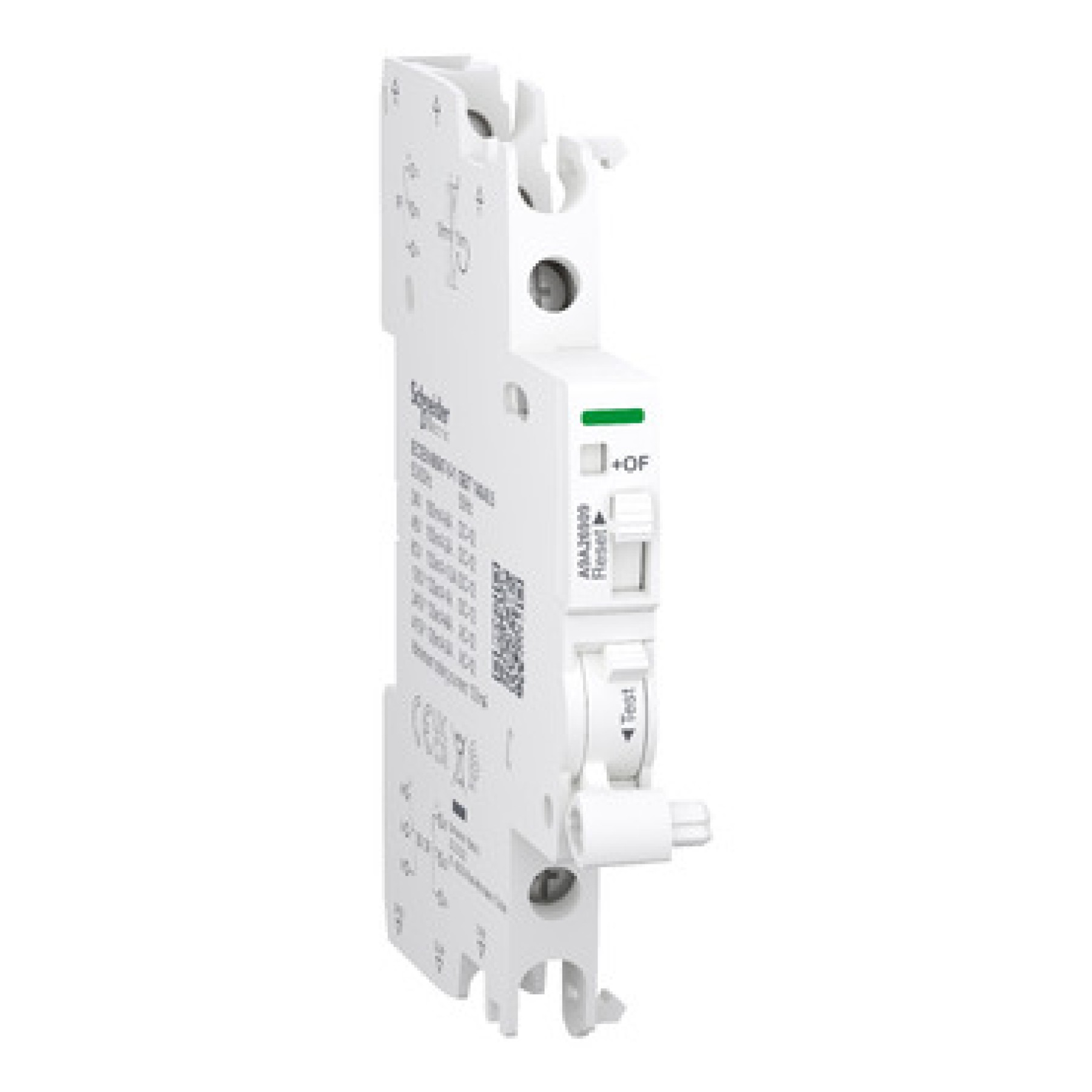

Schneider A9A26909 Auxiliary contact Acti9 A9A iOF/SD+OF 2 C/O 100mA to 6A 24VAC to 415VAC 24VDC to 130VDC top and bottom connection

Product Overview

A9A26909 - Acti9 iSD+OF dual contact auxiliary for combined position and fault indication

Key Features

• Combined iOF/SD+OF - 2 C/O
• Rated current: 100mA to 6A
• Top and bottom connection
• Mechanical fault indicator

Specifications

• Product Title: Schneider A9A26909 Auxiliary contact Acti9 A9A iOF/SD+OF 2 C/O 100mA to 6A 24VAC to 415VAC 24VDC to 130VDC top and bottom connection
• SKU: A9A26909
• Manufacturer: Schneider
• Dimensions (W x H x D): 9mm x 90mm x 73mm
• Operating Temperature: -35 C to +70 C
• Storage Temperature: -40 C to +85 C
• Insulation Voltage (Ui): 500V
• Impulse Withstand Voltage (Uimp): 4kV
• IP Rating: IP20
• Cable Cross Section: 1mm2 to 4mm2
• Width (9mm pitches): 1
• Compatibility: iC60 iID iDPN Vigi iSW-NA iC40 iCV40
• Standards: EN/IEC 60947-5-1 GB/T 14048.5
