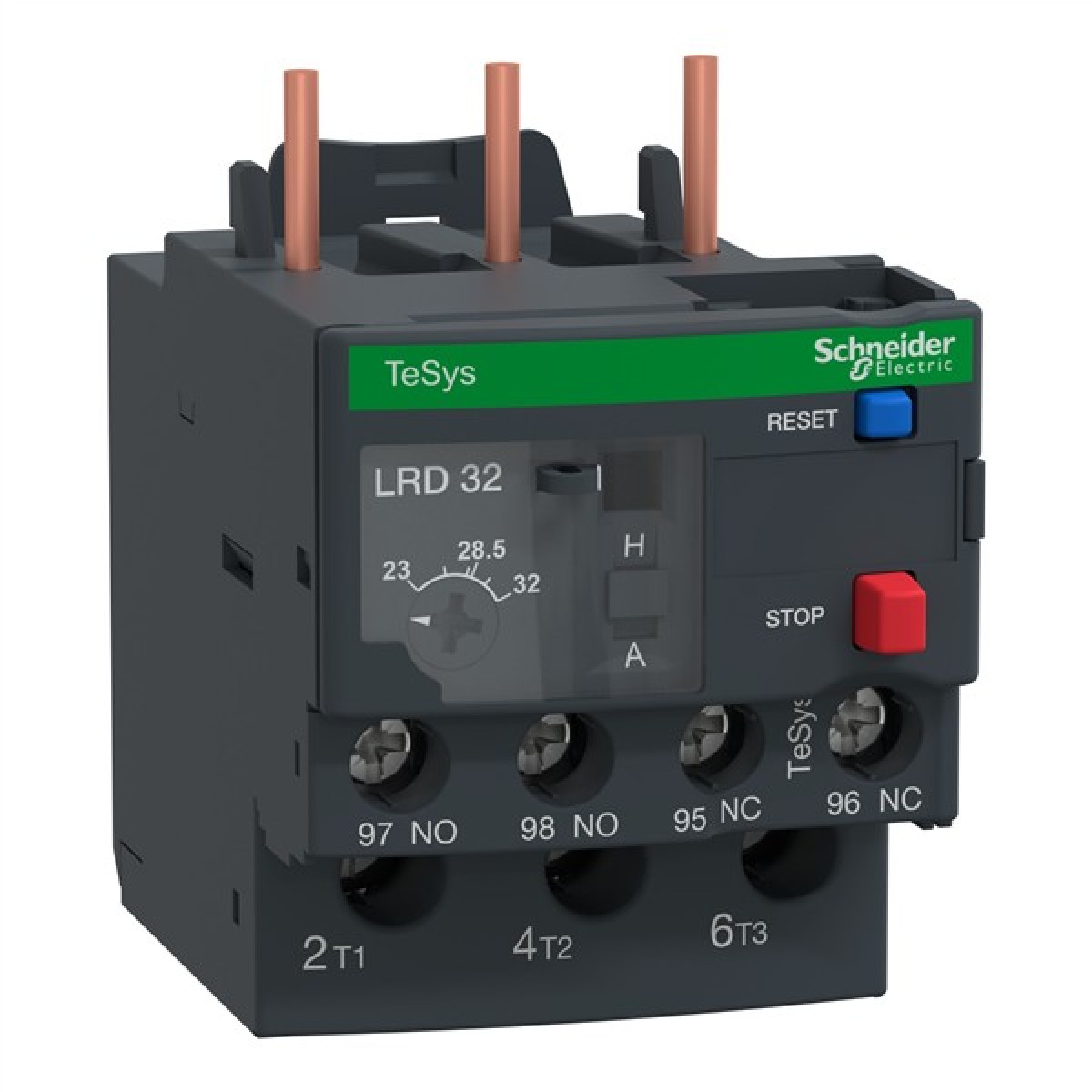

Schneider LRD32 Thermal Overload Relay for LC1D09 - LC1D38 Tesys D Relay 23-32A

Product Overview

TeSys LRD thermal overload relay 32A 690V thermal setting range 23-32A tripping class 10A for protection of 3-phase motors 15kW@400V. Differential device with phase failure (loss).

Key Features

• It provides a thermal adjustement dial a manual-automatic reset selector a test selector for simulation of a tripping reset and stop buttons a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals it connects directly to the bottom terminals of 3-pole contactors LC1D25-D38. Mounting on DIN rail or screw fixing separated from the contactor with use of a terminal block LAD7B205 (to be ordered separately).
• Multi standards certified (IEC UL CSA CCC EAC ATEX Marine).

Specifications

• Product Title: Schneider Thermal Overload Relay for LC1D09 - LC1D38 Tesys D Relay 23-32A
• SKU: LRD32
